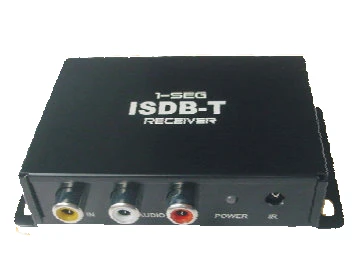

成品照



可清晰接收高畫質ISDB-T數位電視


Compliant with ARIB & BRAZIL ISDB standards .
3 sets of video output.
三組外接影像
Fast automatic scan.
自動快速掃台功能

For ONE seg

Special design for car application with parking/ACC control
特別可使用於車上
Wide range of operation voltage from DC 9V-28V
A/V input for game or other AV source
可由AV輸入播放影像或外接遊戲
Extention IR box for easy installation
可遙控 輕鬆設定及安裝
Parent lock function for Brazil
Supports EPG, closed caption and time zone
Fast automatic scan
Specification:(技術規格)
RF input level 95 ±3dBm CR2/3
Receiving frequency UHF 470MHz~770MHz (for Japan)
UHF 470MHz~803MHz (for Brazil)
Nominal input 75Ω( F Terminal)
Channel selection electronic tuning, PLL synthesizer
Color system NTSC/PAL-M
Video output 1Vpp 75Ω x 3
Audio output audio R/Audio L >1Vpp 10KΩ with E volume
Power supply DC 9V-28V 90mA~30mA
4pins socket ACC/parking/+12~24V in/GND
Size (W x H x D): 97.4(W) x 58.3(H) x 23(D)mm
Net weight: 91g(APP.)
Operation temperature: -10°C~+50°C
Storage temperature: -20°C ~+65 °C
Accessories:(包裝配件)
R/C unit
DC cable
IR extention box
AV wire with 6pins DIN plug
Operation manual

介面說明
